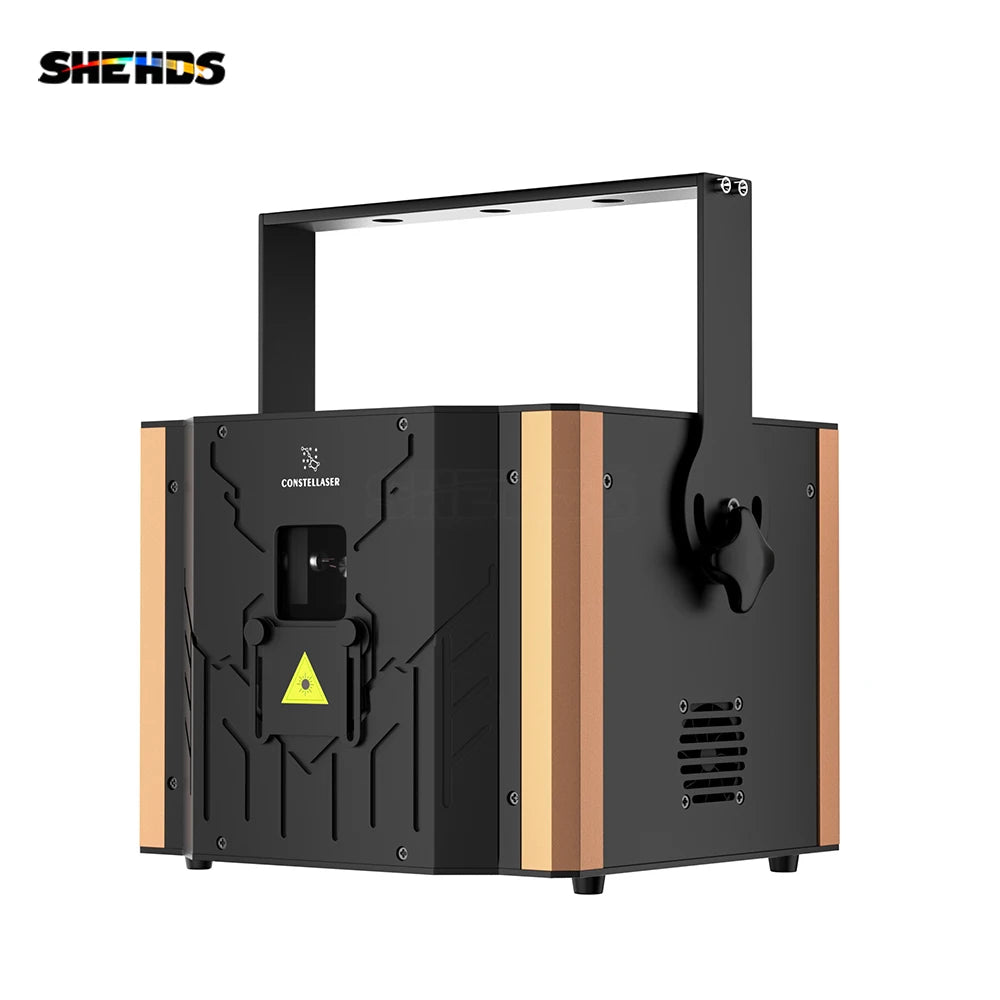

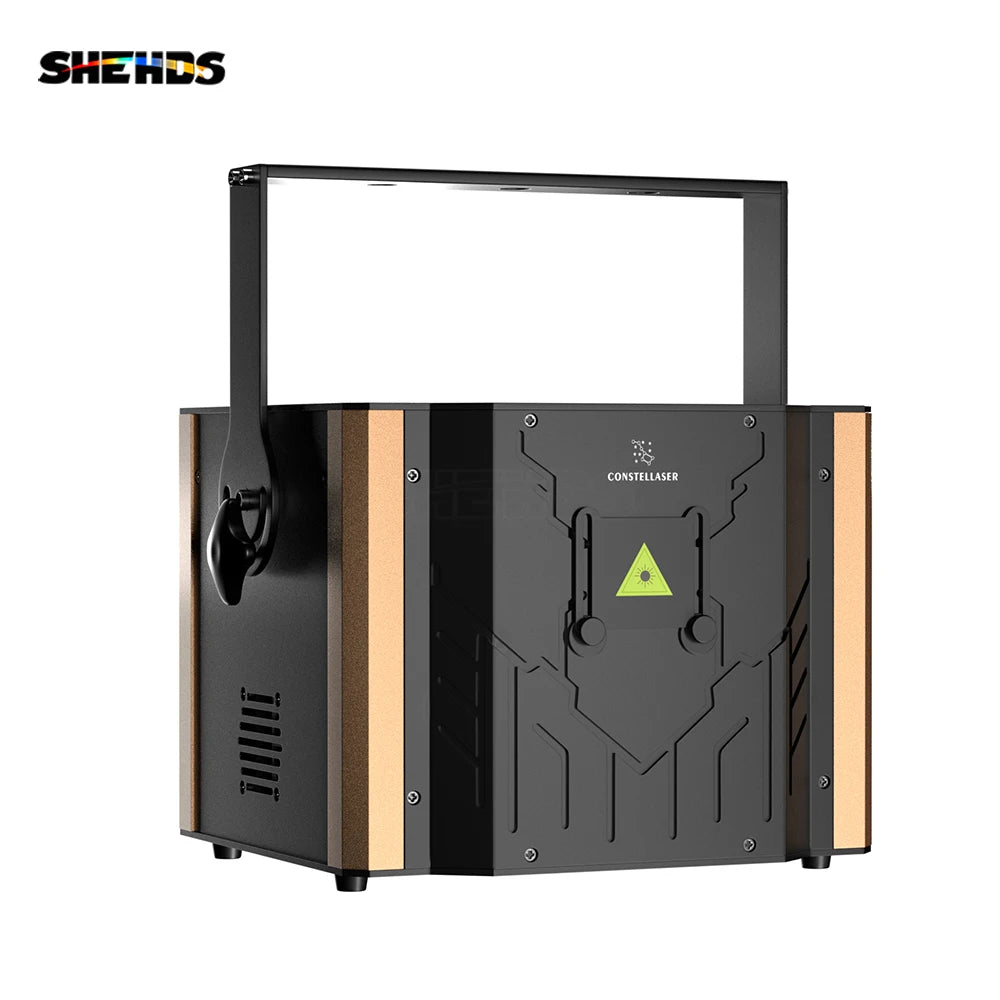

20KPPS 6W RGB Animation Par Light – High-Frequency Scanning for DJ & Events
20KPPS 6W RGB Animation Par Light – High-Frequency Scanning for DJ & Events
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: SHEHDS
Installation Method: self-contained
Is Bulbs Included: No
Certification: CE
Certification: EAC
Certification: FCC
Certification: RoHS
Certification: UL
Certification: weee
Hign-concerned Chemical: None
Power Source: AC
Luminous Flux: 249-2000
Item Type: Stage Lighting Effect
Style: DMX Stage Light
Occasion: Professional Stage & DJ
Power: 6W
Voltage: 100~240V AC 50/60HZ
6W RGB Animation Light
High-frequency scanning pattern light
Professional stage equipment
Constellation LightSeries
The origin of constellations can be traced back to prehistoric times.
People use them to tell stories about their beliefs, experiences,
creations and myths. Our designers have created a variety of stage lights under the name of "Constellation Light".
Like the stars that light up the nebula in the dark, our Light light up every stage.
Technical Parameter
-Light source parameters | |
Light wavelength: |
R-638nm, G-520nm, B-450nm |
Spot size ( Light window spot): |
5.5mm |
Light source divergence angle : |
<1.2mrad |
Modulation mode: |
0~5V analog, up to 50khz/TTL |
Light class: |
Class IV |
-Imaging system | |
Imaging color: |
Red, green, blue, yellow, purple, cyan, white mixed colors |
Evenness: |
>98% |
Lens Horizontal Offset: |
-30% to +30% |
Lens Vertical Offset:: |
-30% to +30% |
Imaging mode: |
3D/2D pattern and animation (with software) |
Projection distance: |
<100M The best distance is 18~60M |
Playback rate: |
20KPPS |
Playback angle: |
Max60° |
-Security system | |
Safety standard: |
Follow the IEC60825 standard |
Safety item: |
Overcurrentand voltage protection |
Degree of protection: |
IP20 |
Operating temperature: |
15℃~45℃ |

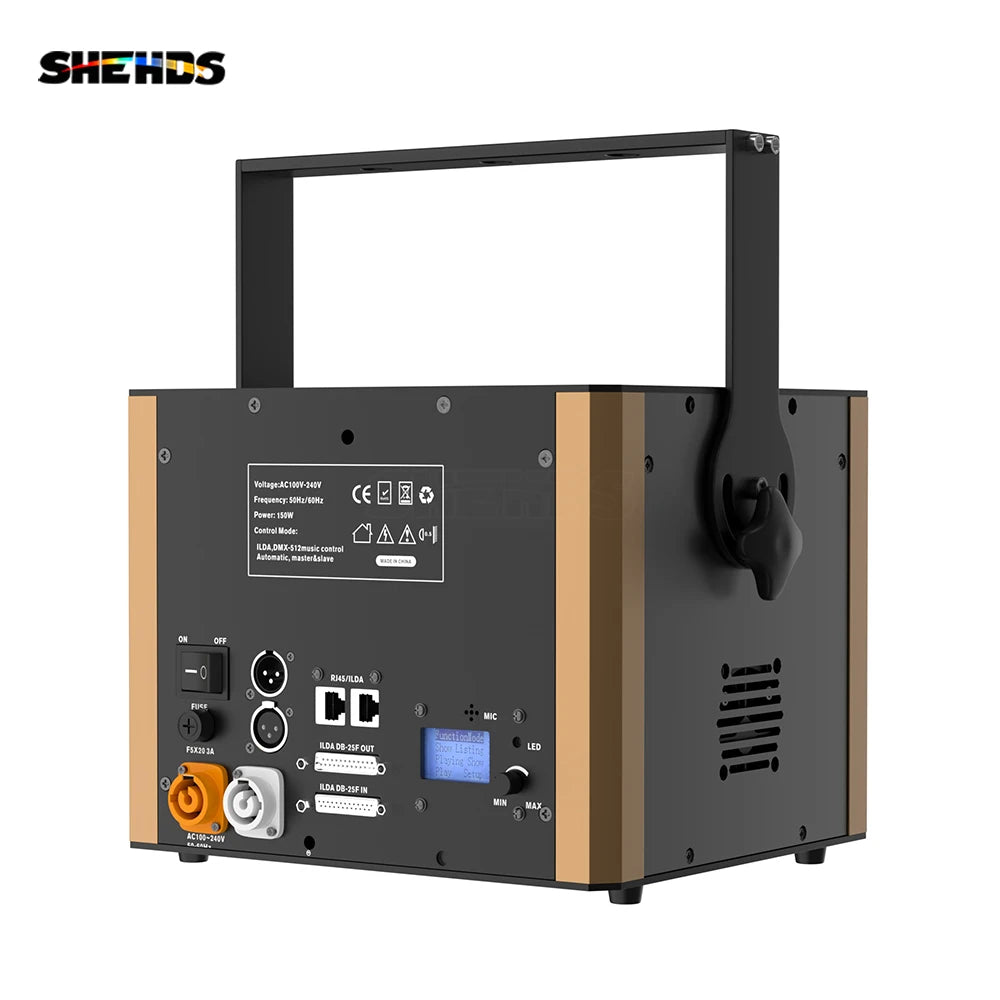

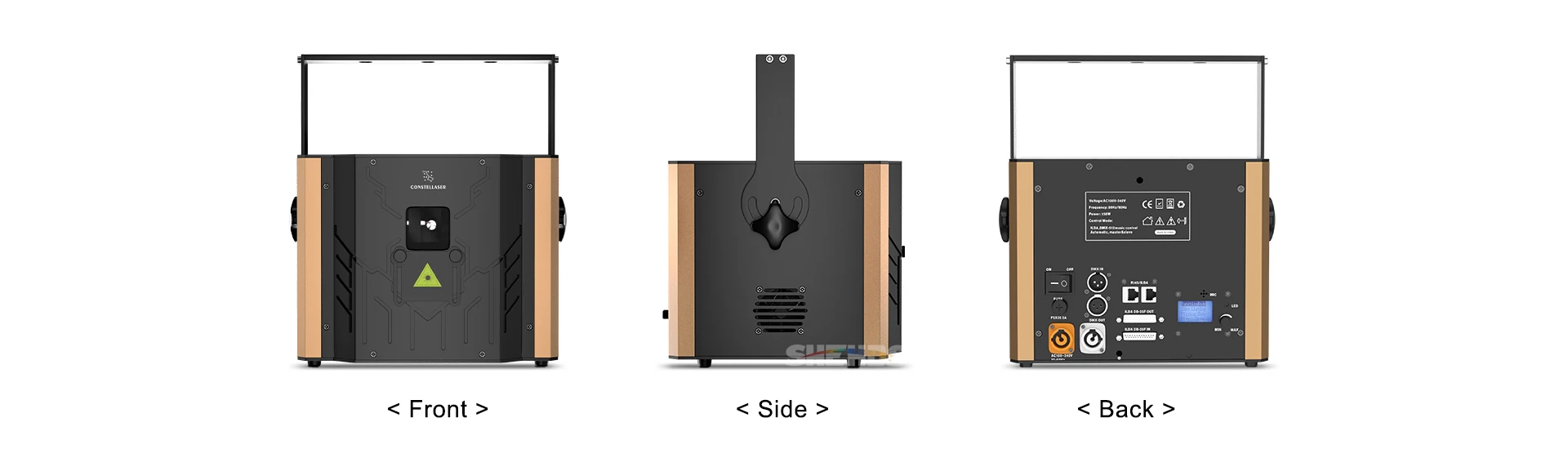

-Interface and Control System | |
Control interface: |
ILDA In/Out , DMX In/Out ,RJ45 In/Out |
DMX channel: |
10/18CH |
Power interface: |
Neutrik PowerCon |
-Cooling system | |
Cooling method: |
air cooled |
Structure: |
60mm plug-in heat dissipation layer |
Ventilation fan: |
60mm fan in*1, 60mm fan out* 1 |
-Power consumption | |
Working power: |
100~240V AC 50/60HZ |
Power consumption: |
Max 150W |

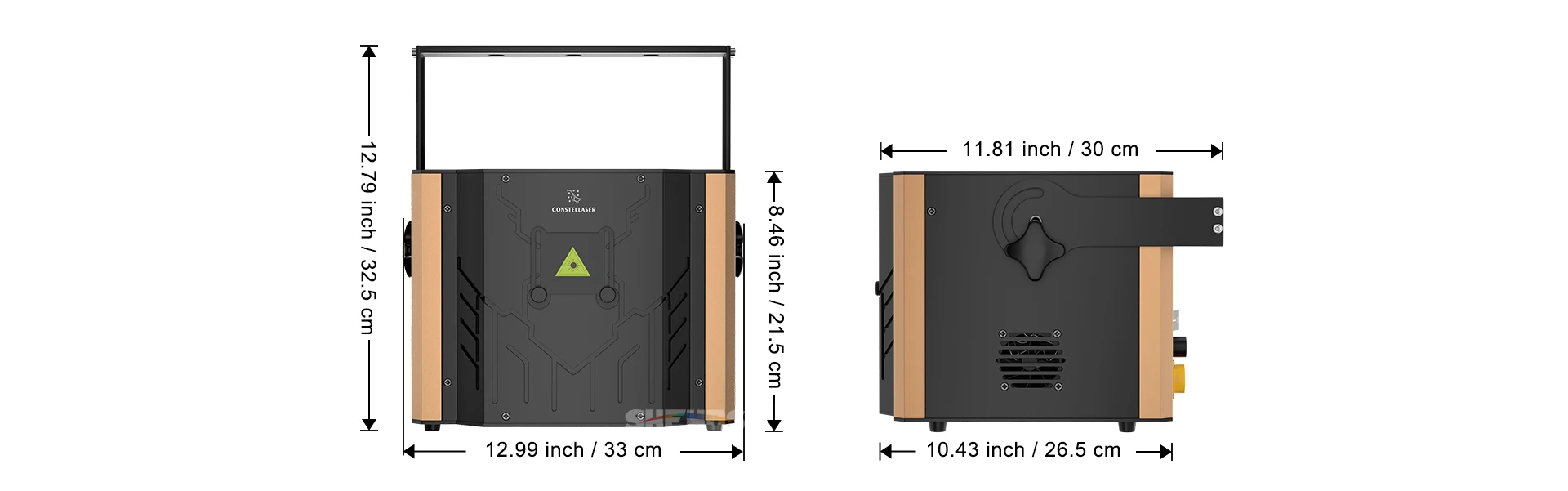

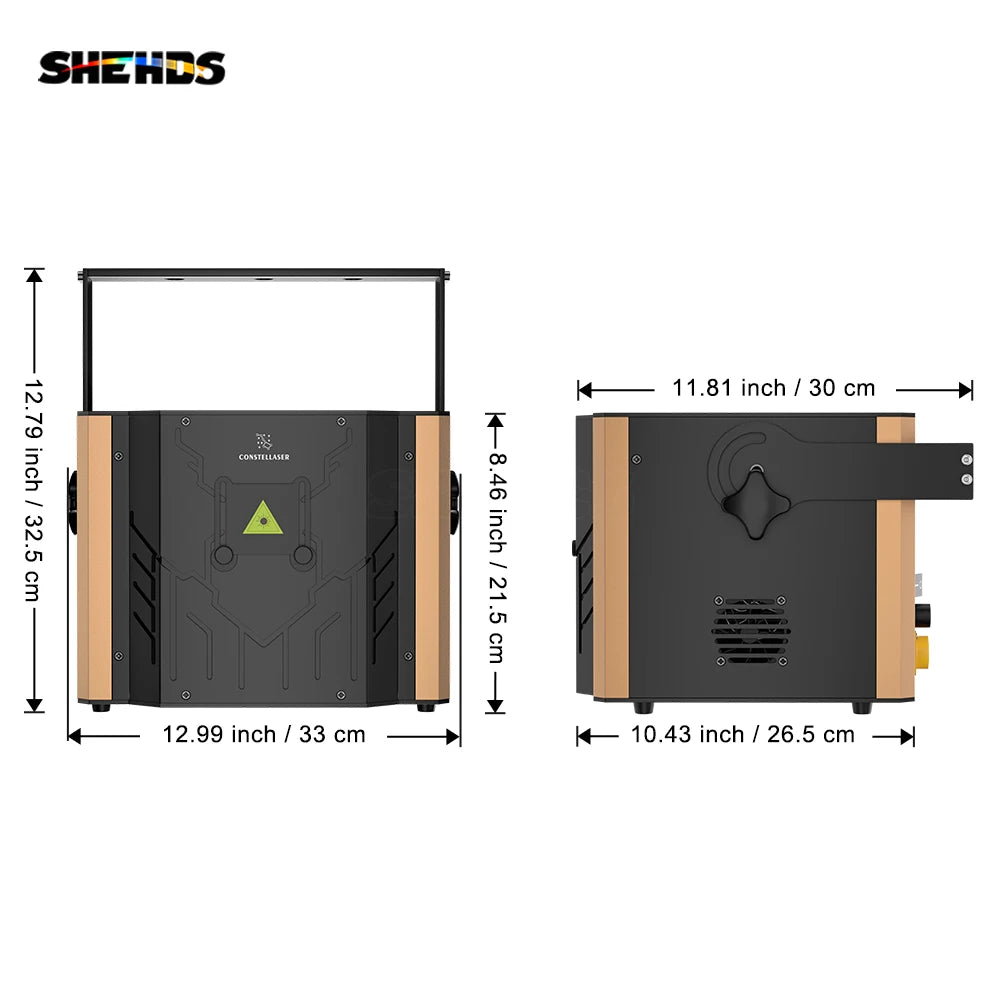

-Physical parameters | |
Product size : |
12.99x11.81x8.66 inch / 33x30x22 cm |
Product weight: |
5.16 Kg |
Pack size: |
14.57x13x9.45 inch / 37x33x24 cm |
Package weight: |
7 Kg |

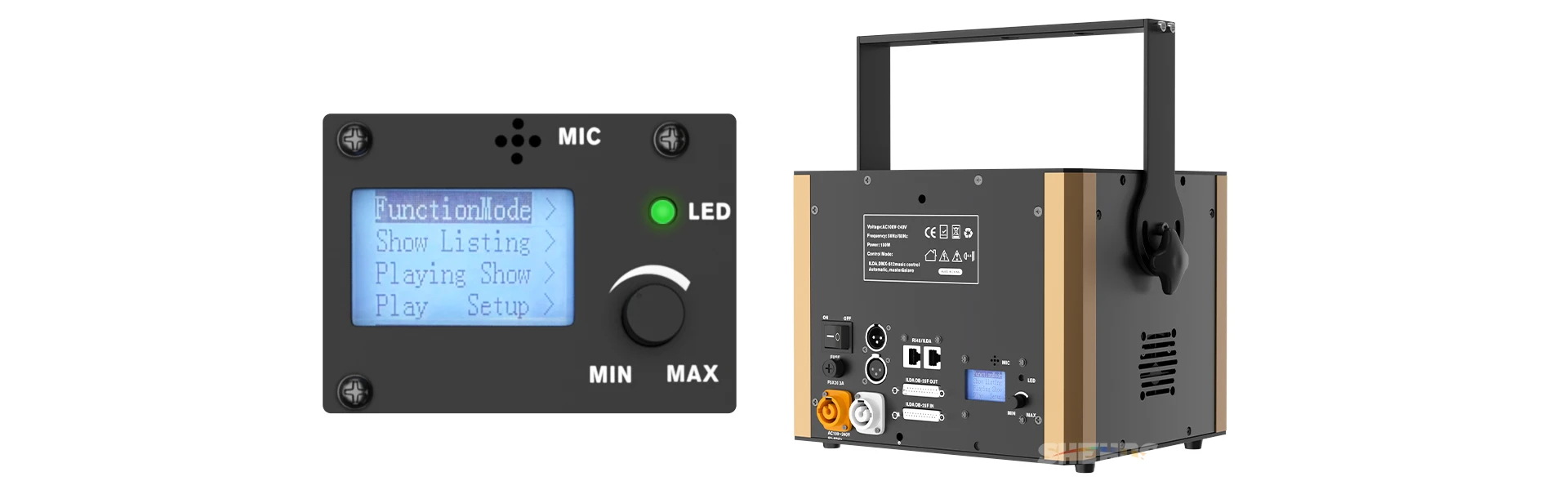

Menu function
5 auto modes, 5 sound control modes customizable animation speeds
convenient rotary button menu key.

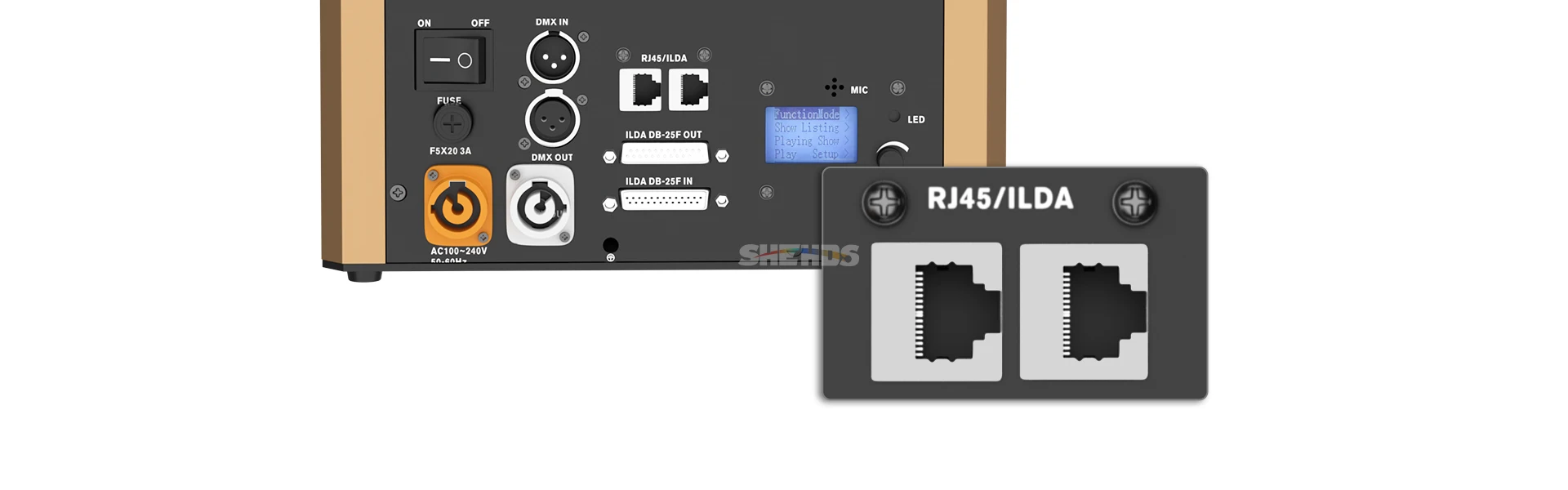

RJ45 Ultra Long Range Fast Track
The RJ45 network cable interface can help you quickly and stably transmit optical signals,
as well as provide you with broader data transmission space
and more efficient signal transmission speed, making your stage lighting, stage lighting,
and theater more eye-catching.

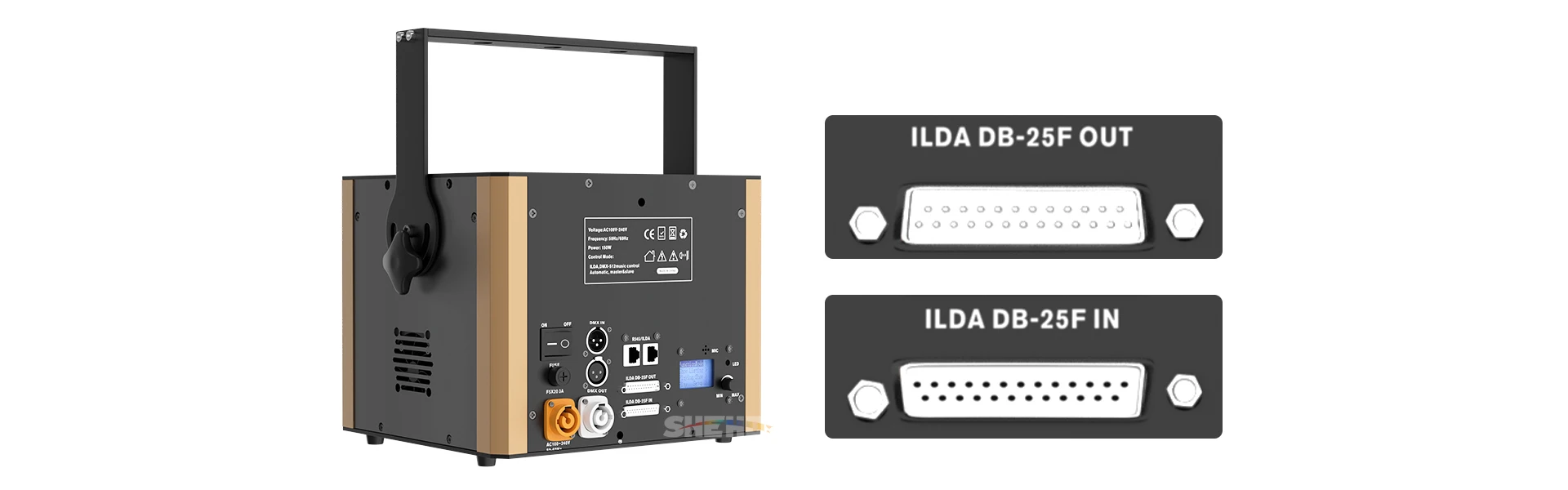

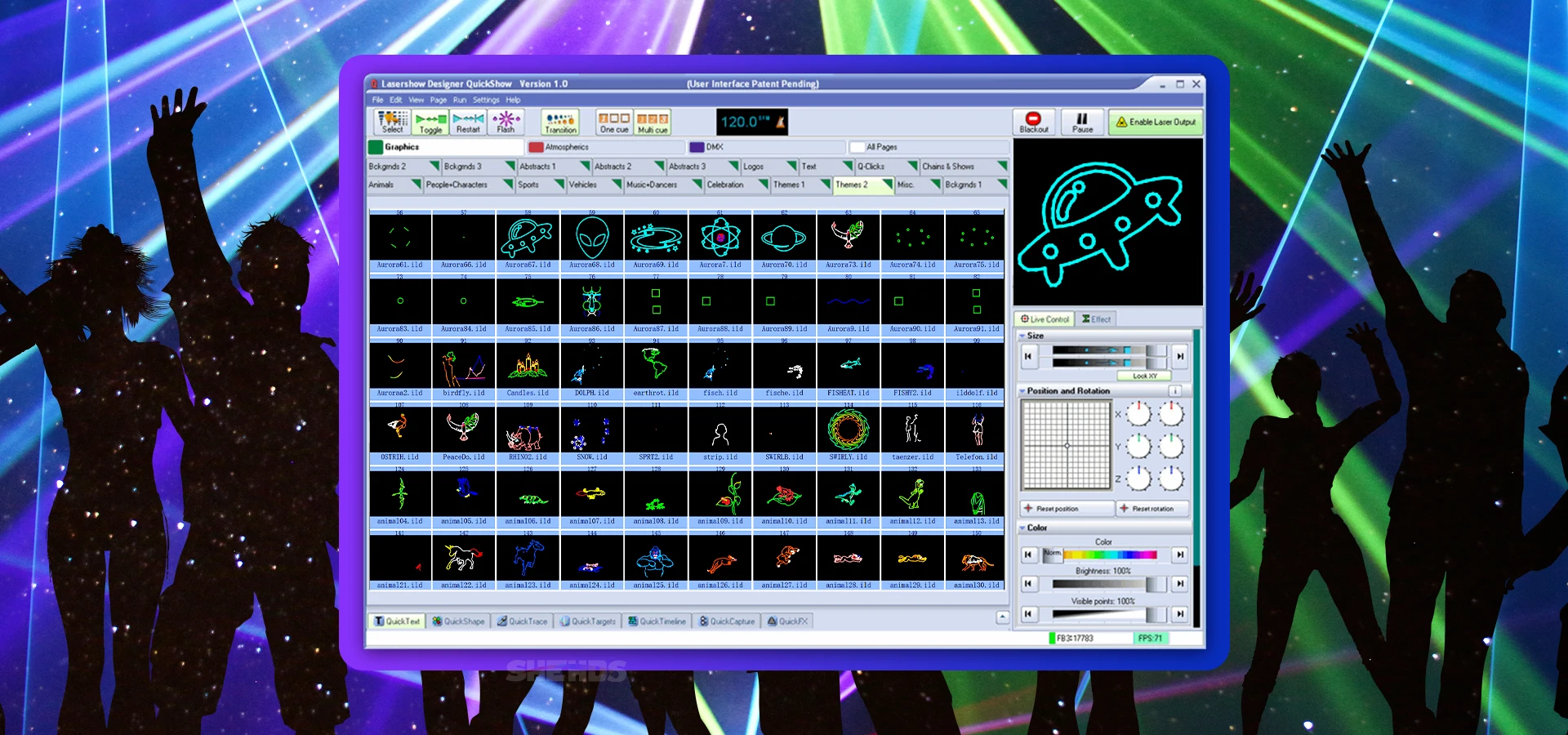

ILDA Protocols
Professional software that supports ILDA interface device input,
multimedia display programming, and on-site improvisation performance output.
Control Model
The best feature of this light is its programmability and versatility.
You can choose a variety of animation and pattern effects through the controller or DMX controller.
At the same time, it also supports sound mode and auto mode,
which can change freely according to the music and environment to bring more outstanding effects to the stage performance.
Adopting high-quality RGB Light source
Possess colorful colors
Light Effect
It has a variety of patterns and animation effects, supports automatic and voice-activated modes,
sharp and even light, and uses the best accessories and Light.
High Speed Galvanometer
20 KPPS with high precision
The high-frequency scanning technology ensures a smooth and seamless display of Light patterns,
with sharp and precise movements that are sure to captivate any audience.

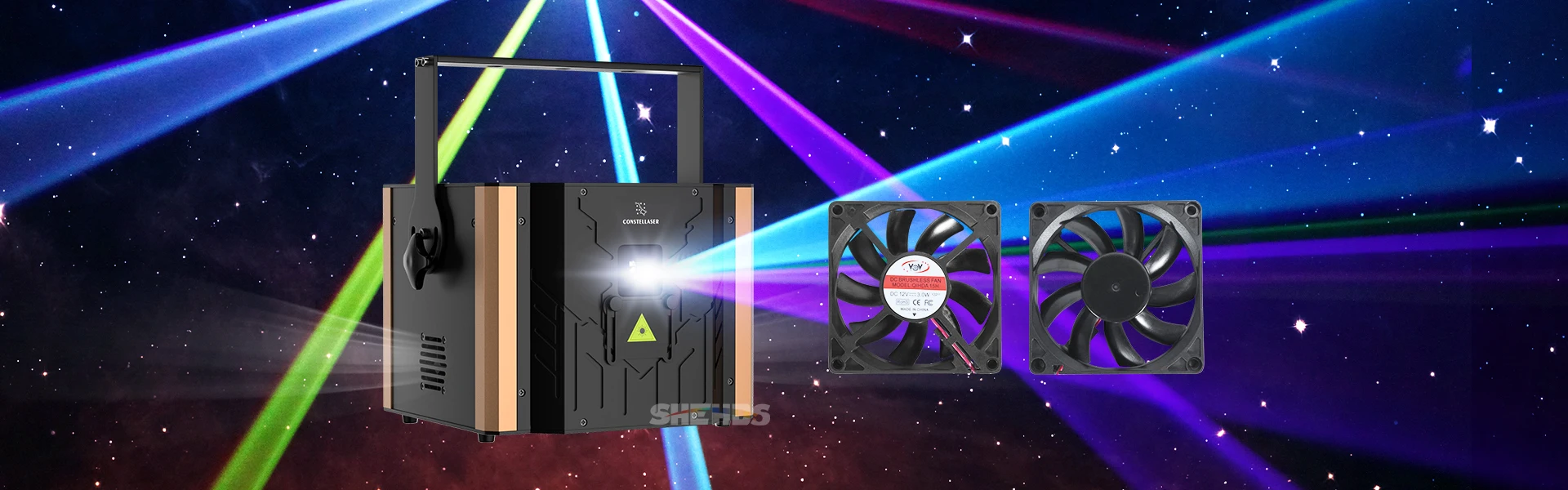

Cooling Fan Input x1 Output x1
High efficiency cooling fan
The Northern Lights Canopy Effects
Presenting a dreamy and colorful visual effect similar to the aurora
Multiple Pattern Effects
Partial pattern display, more pattern effects waiting for you
Applicable Scene
These lights are perfect for creating stunning visual effects in bars and clubs,
enhancing the vibrant atmosphere of any venue.
SAFETY TIPS
During the use of a light source,
Do not look directly at the light source.
The effect of stage lights is formed by high-speed scanning of the
beam through high-speed galvanometers or low-speed stepper motors.
The harm to the human body is mainly reflected in the harm to the eyes,
and prolonged exposure can lead to blindness.

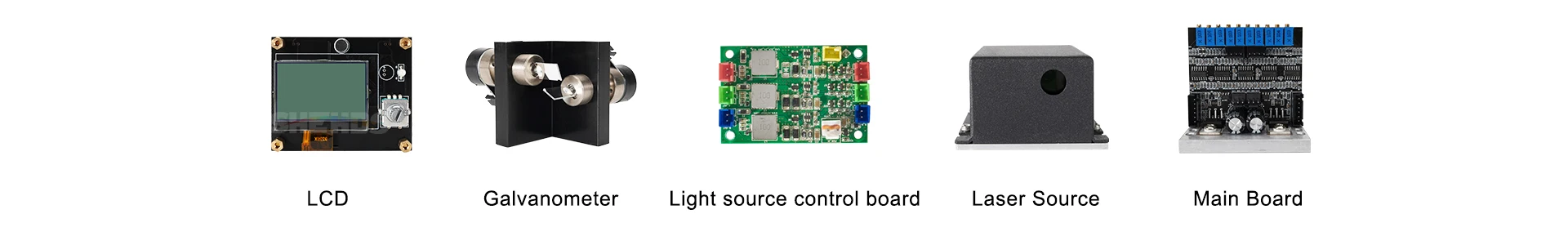

Carefully Select Excellent Accessories

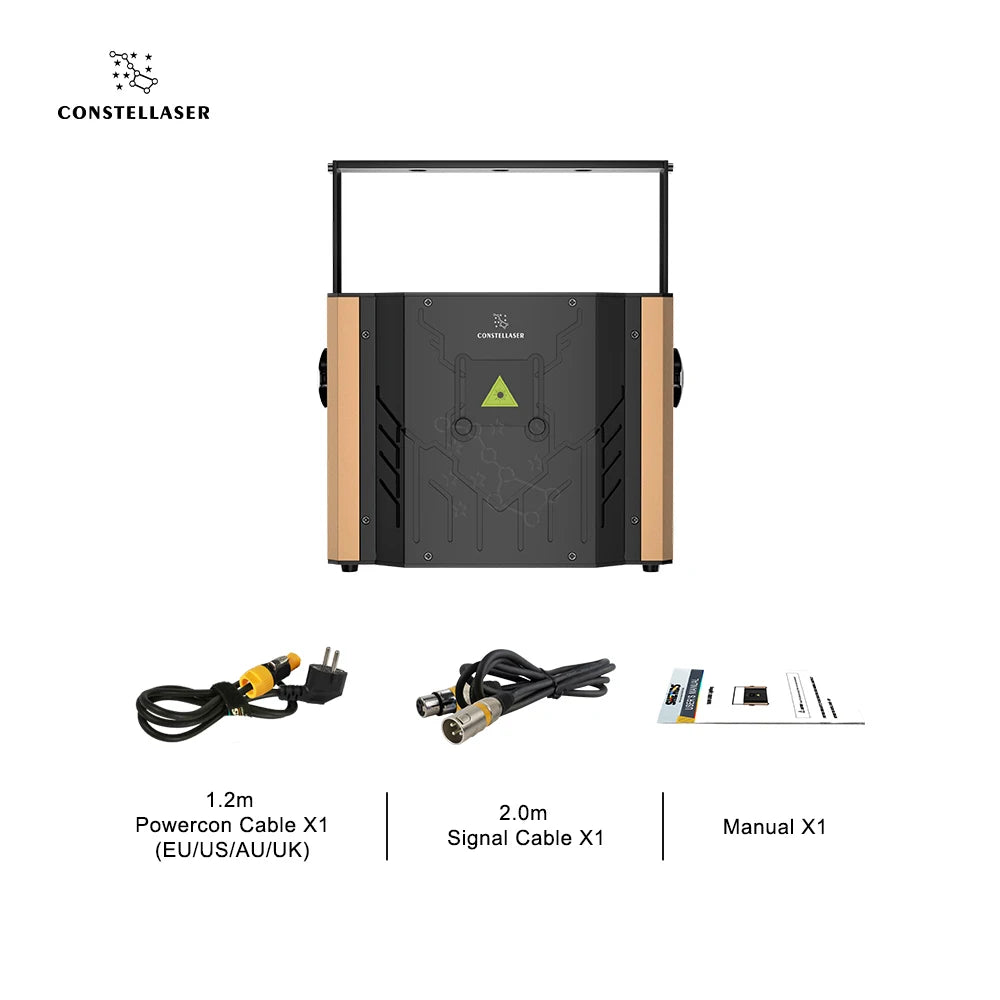

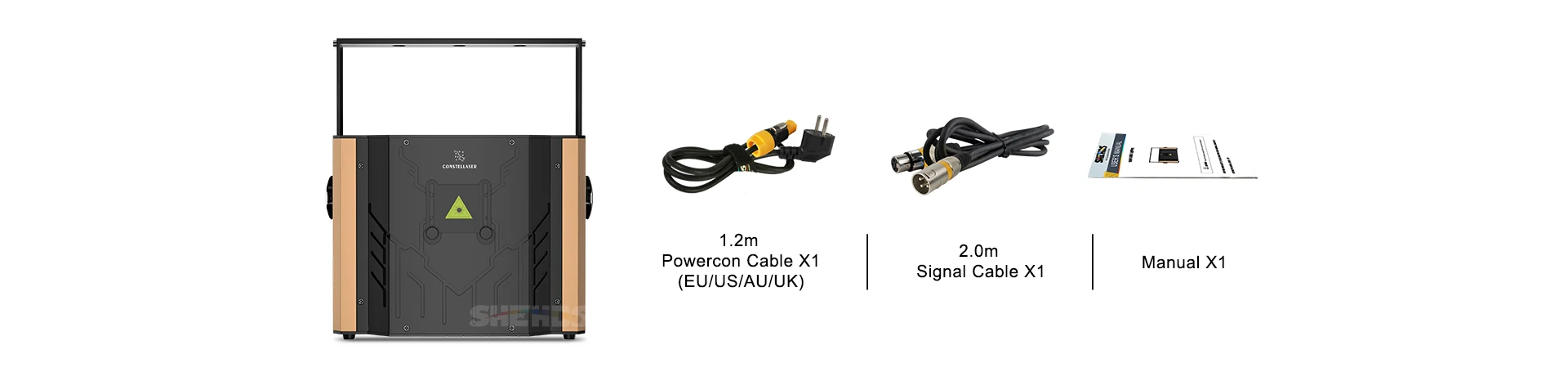

Additional Accessories

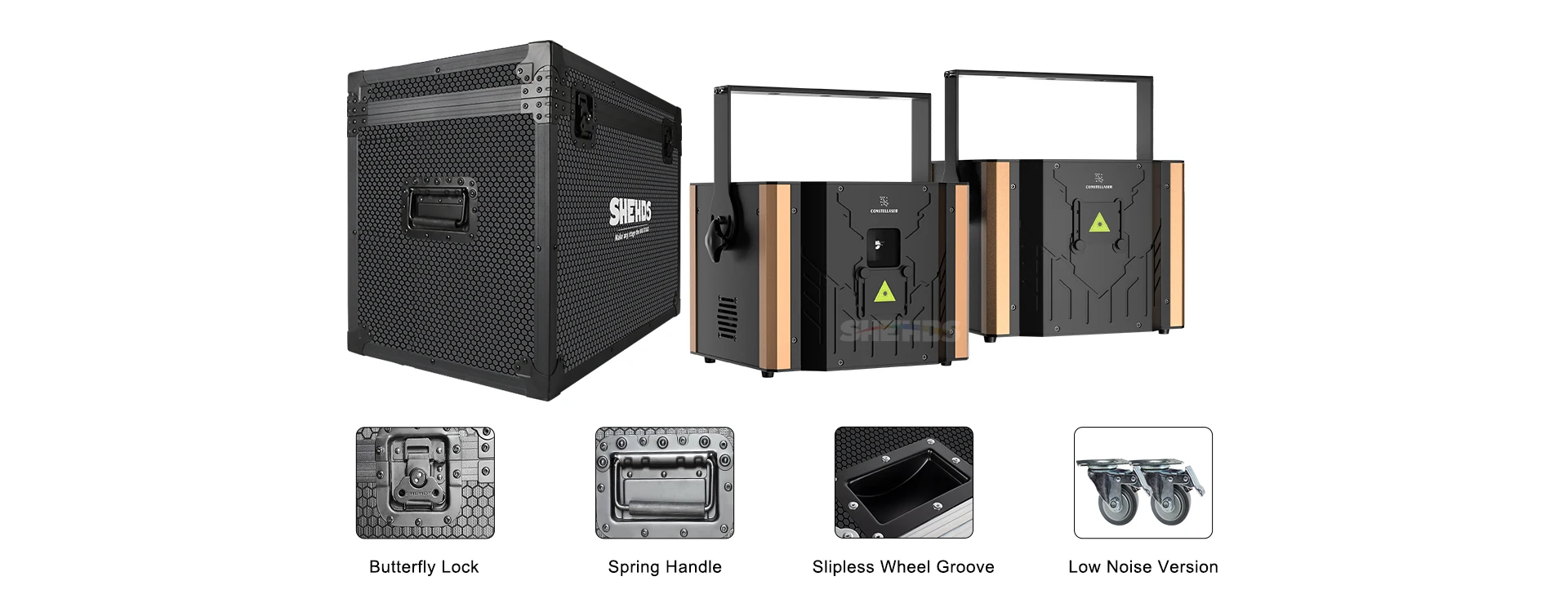

Flight Case DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service, please consult customer service for details!
Qualification Certificate
International organizations Authority certification
